Fiber-optic FPV — technical specification
AEROSCOPE T4 fibre-optic strike line: physical optical link replaces RF for command and video.
T4-F10 · T4-F15 · T4-F20 · T4-ML — product walkthrough

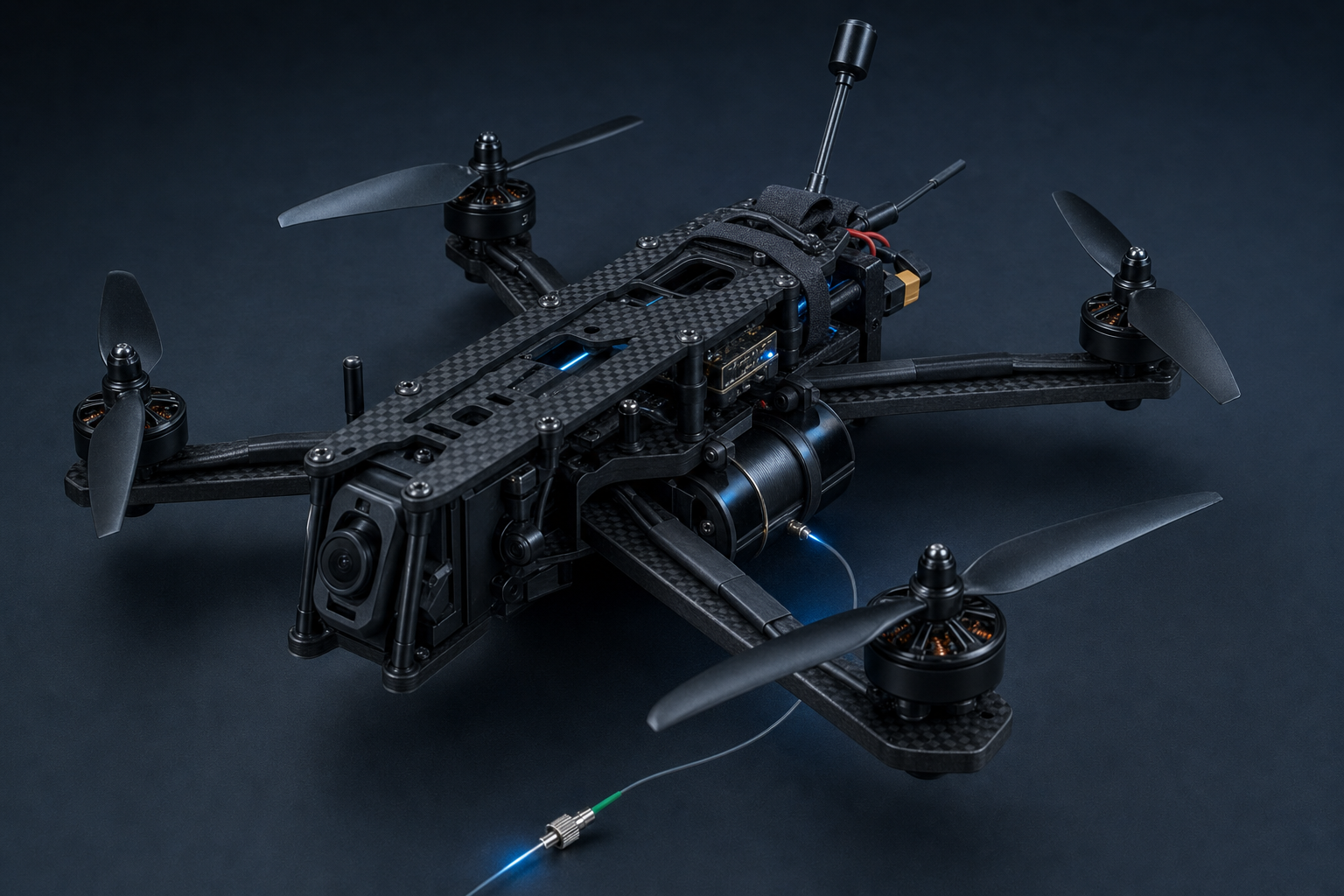

T4-F10 · Fiber Strike 10 km
| Parameter | Value | Notes |
|---|---|---|
| Optical fibre | G.657.A2 · 0.26 mm · 10.1 km | Sky-mounted spool; payout >50 N tension class |
| Sky module | 16–35 g · FC UPC | 1310/1550 nm · CRSF / ELRS bridge |
| Ground terminal | 29–65 g receiver | XT60 4–6S · BNC/RCA video out |
| Strike airframe | 10" carbon quad (T1 class) | Integrated spool mount · CG marked with warhead sim |
| Control path | Fibre only — no RF command | Immune to barrage jamming and RF direction-finding |
| Video path | Analog HD over fibre | <1 ms one-way latency typical |
| EW resistance | Full — physical link | GPS spoofing may still affect autopilot if fitted |
| Spool mass (sky) | ~1.0 kg incl. module | 101.6 mm × 351 mm drum class |

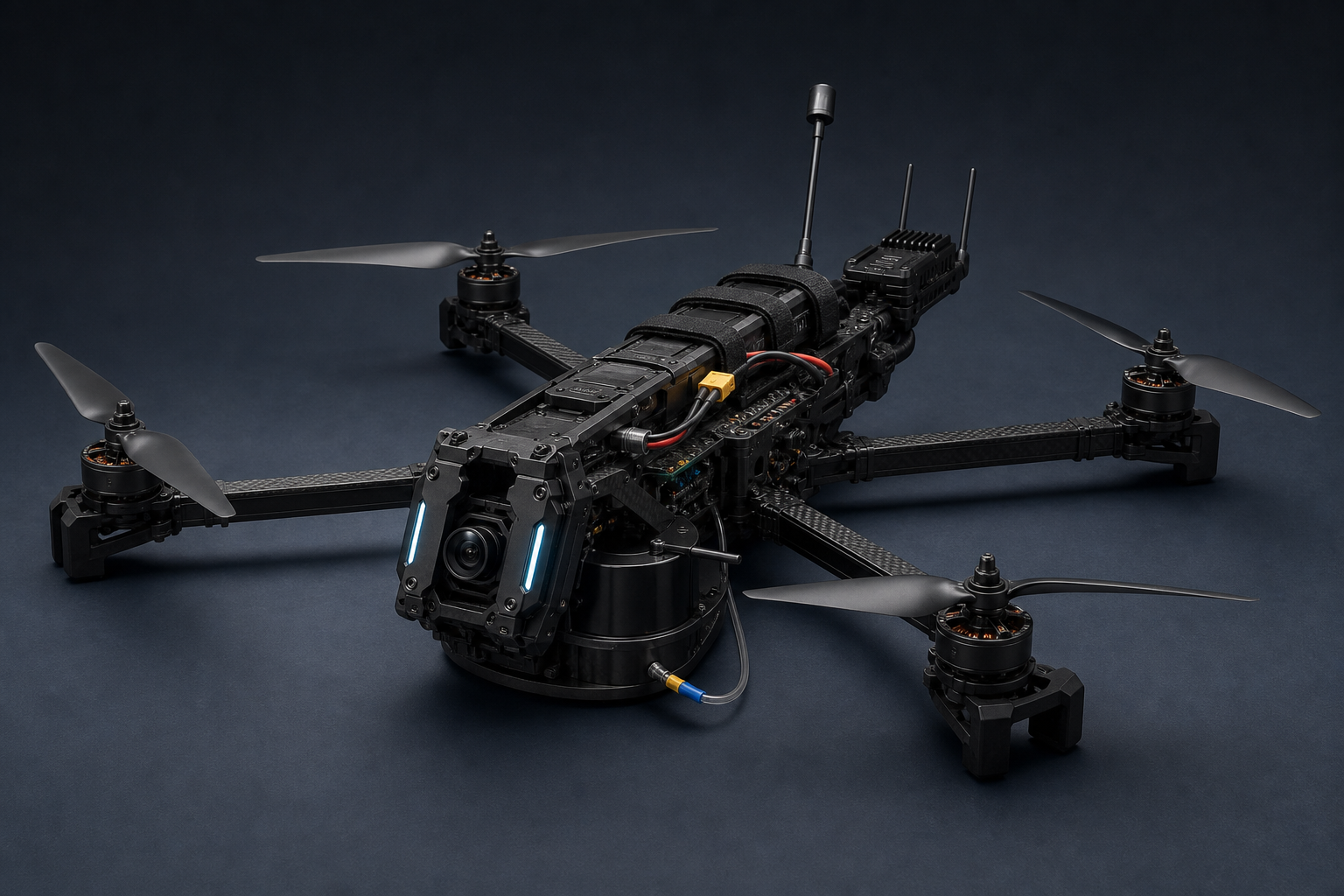

T4-F15 · Fiber Strike 15 km
Flagship fibre tier — 13" heavy quad base (T2 class) + 15.1 km spool. Recommended for anti-armour in dense EW.

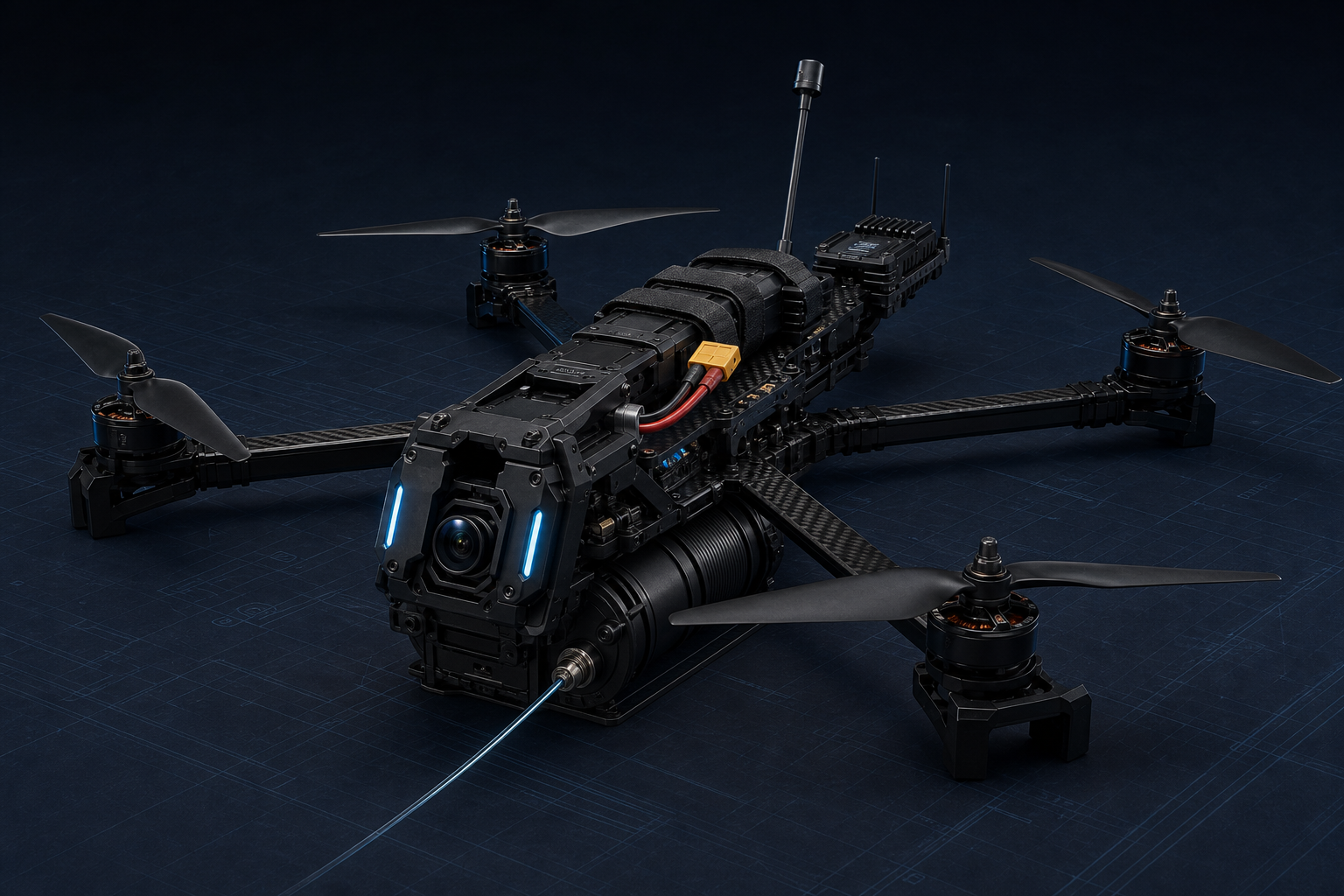

T4-F20 · Fiber Strike 20 km
Maximum tactical fibre envelope — 20.1 km drum (~2.0–2.6 kg sky end). Single-use strike profile; fibre snaps on impact.

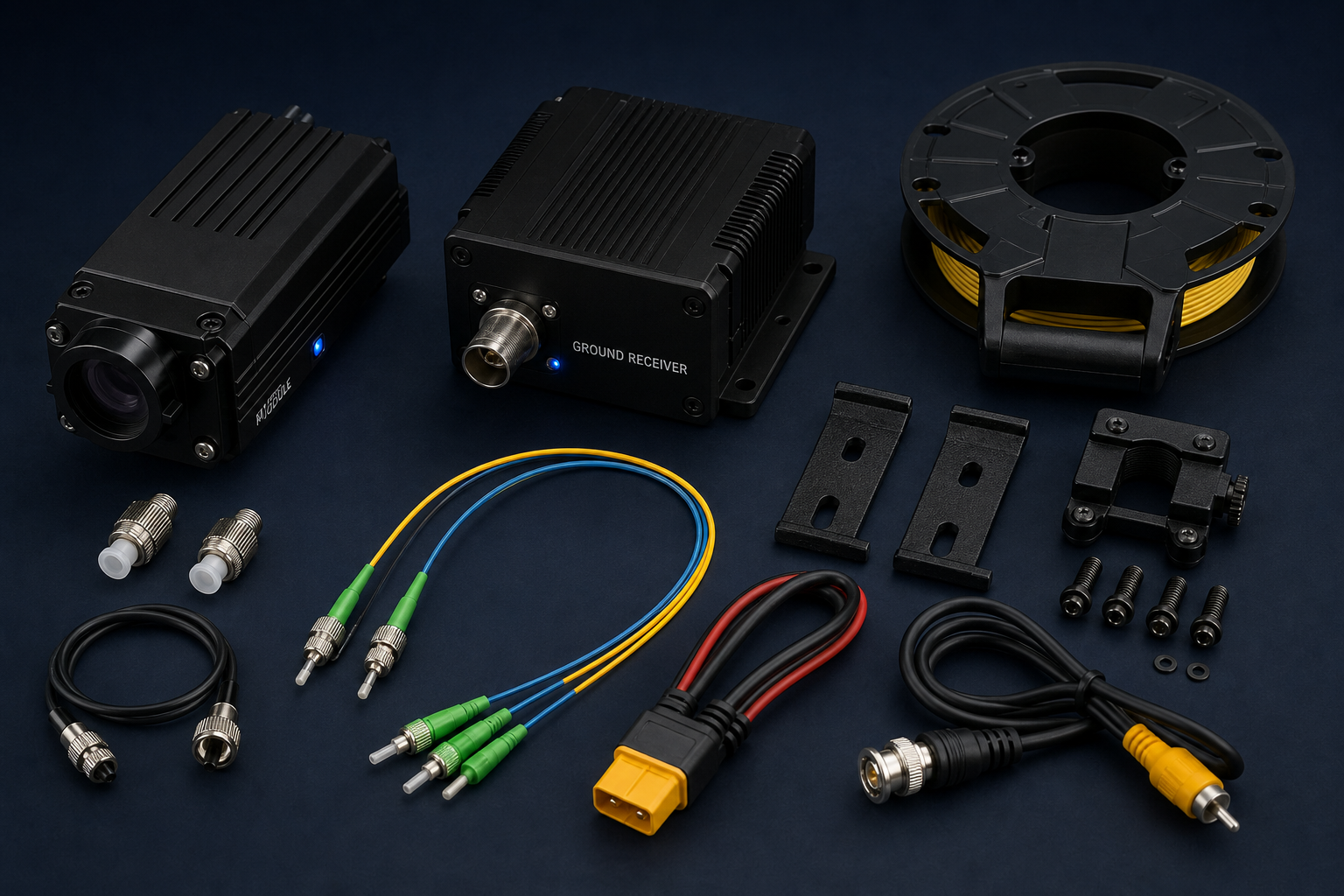

Optical module kit
Sky link + ground terminal — bidirectional light-pulse bridge. Compatible with ELRS / CRSF / SBUS / DJI TTL class hand controllers via GH1.25 data interface.
- Input power sky: 3.3–32 V DC or 3–6S battery
- Wavelength: 1310 nm / 1550 nm single-mode
- Attenuation budget: ~5–7 dB at 20 km — within commercial transceiver margin
- Operating temperature: −50 °C to +100 °C (industrial fibre class)

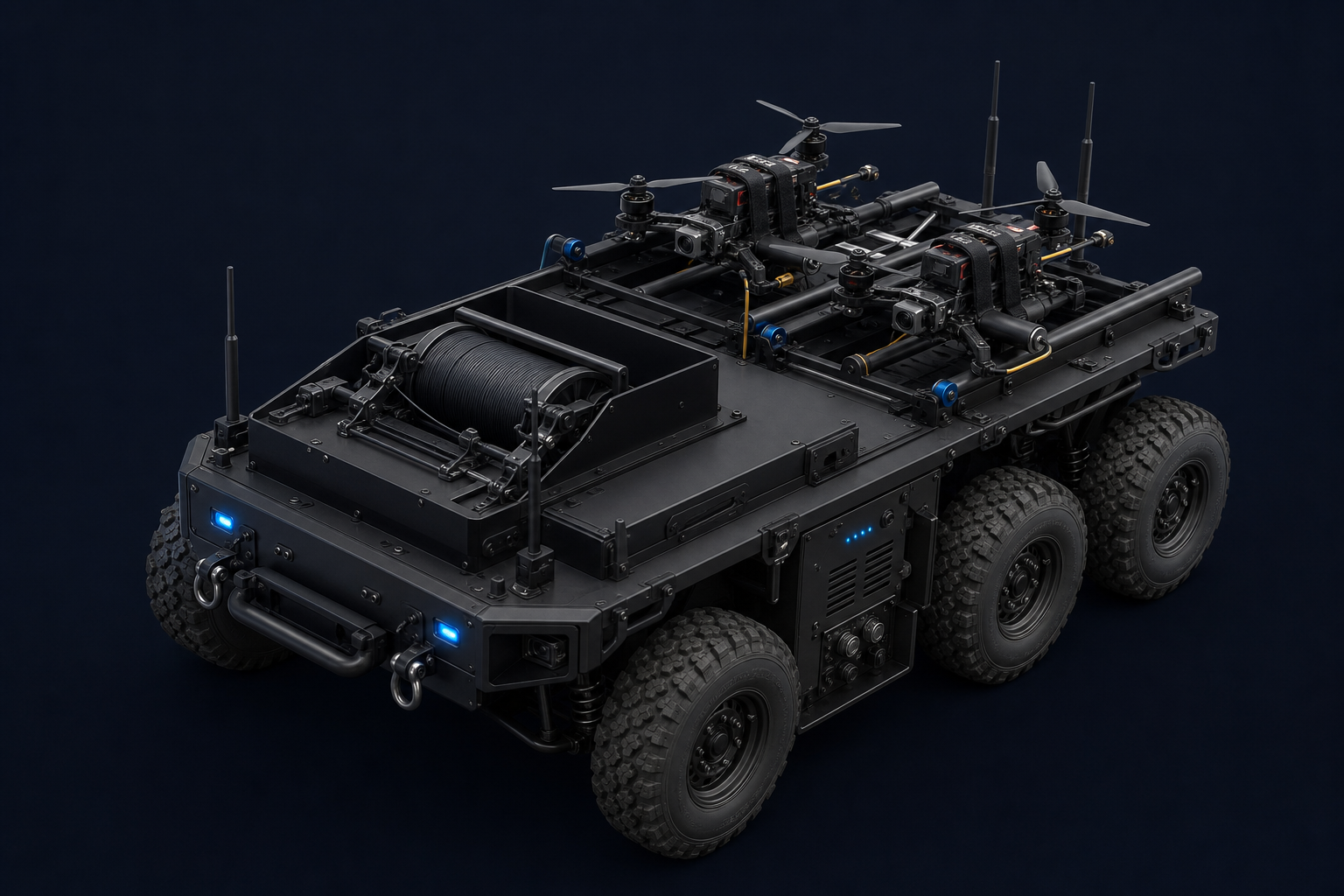

T4-ML · Mobile Fiber Launcher
Mobile unmanned ground vehicle relays fibre payout — same operational class as Dronobus / mobile fibre launcher programmes shown in global EW theatres. UGV tows or trails fibre; drone operates on air segment with hardwired C2. Runway-free deployment for QRF cells.
Bill of materials — T4-F15 reference
| Component | Indicative USD | Notes |
|---|---|---|
| 13" heavy strike airframe (T2 base) | $520–650 | FC, ESC, motors, props |
| 15 km fibre kit (spool + sky + ground) | $380–520 | G.657.A2 0.26 mm · OEM class |
| FPV camera + VTX over fibre bridge | $45–80 | Analog or HDZero path |
| 6S–8S Li-ion pack | $120–180 | Heavier than RF-only T2 |
| Integration, payout test, QA log | $120–180 | AEROSCOPE integration cell |
| Field kit (spare fibre tail, tools) | $35–60 | Per batch |
| Typical total T4-F15 | $1,480 | ±15% by fibre commodity · May 2026 list |
Industry reference pricing (open market, 2025–2026)
- Bare 10 km G.657.A2 spool (0.26 mm): ~$99–$280 OEM.
- Complete sky+ground module kit 10 km: ~$237–$450.
- Integrated fibre FPV airframe (field reports): ~$700–$1,000+ above RF-only T2.
- G.657.A2 commodity surge early 2026 — confirm fibre line item at PO signature.
Open references: RCDrone fibre module kits · Transwan BY-Drone-315 · Glory Optical GL-FPV-M series · Klesman 20 km spool · Zion Communication FPV optical tether line · SSBCrack Dronobus mobile launcher reports.
Programme stack
T4 fibre wins in dense EW where T1–T3 RF links fail.
| Tier | Unit economics | Mission |
|---|---|---|
| T4-F fibre FPV | $1,100–1,800 | EW-immune tactical strike 10–22 km |
| T4-ML launcher | $68,000+ | Mobile fibre payout + 2× drones |
| T1–T3 RF FPV | $300–1,000 | Permissive EW · cost per kill |
| P1–P3 ICE | $135k–325k | Persistent ISR 250–500 km |
